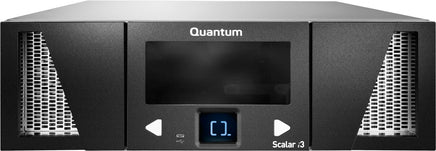

Quantum Scalar i3 3U Base Tape Library. Add Drives - LTO7, LTO8, LTO9

Quantum

$3,349.00
SKU: LSC33-BSC0-001A

Price Match Buy custom lto tape labels

Add-ons


$5,693.00
Quantum Scalar i3 LTO Tape Drive LTO-7 SAS LSC33-ATDX-L7NA


$5,250.00
Quantum Scalar i3 Tape Drive LTO-7 FC LSC33-ATDX-L7JA


$6,944.00
Quantum Scalar i3 Tape Drive LTO-8 SAS LSC33-ATDX-L8NA


$6,250.00
Quantum Scalar i3 Tape Drive LTO-8 FC LSC33-ATDX-L8JA


$8,550.00
Quantum Scalar i3 Tape Drive LTO-9 SAS LSC33-ATDX-L9NA


$9,990.00
Quantum Scalar i3 Tape Drive LTO-9 FC LSC33-ATDX-L9JA


$2,299.00
Quantum Scalar i3 25-Slot Capacity on Demand Upgrade License LSC33-ALSE-001A


$2,200.00
Quantum Scalar i3 Advanced Reporting Option License LSC33-ALAR-001A


$7,900.00
Quantum Scalar i3 Active Vault License LSC33-ALAV-001A


$3,650.00
Quantum Scalar i3 3U Expansion Module, LSC33-AEXM-001A

Please contact us to get help with the library configuration.

   Base library with no tape drives included. Used whenever an expansion module is not initially needed (i.e., the initial configuration is up to 50 slots and up to three tape drives). If a larger initial configuration (more than 50 slots or more than three tape drives) is needed or the customer wants a base system with a pre-installed expansion module to accommodate easier future expansion, order LSC33-BSJ0-001A. Includes 3U library control module with embedded Ethernet, partitioning capability, 25-slot license, 3U rackmount kit, one power supply, one 3ft (0.9m) C13-C14, and one 3ft (0.9m) L-5-15 power cords.

  Supports up to a maximum of 50 slots and three tape drives before an Expansion Module is needed. Scalar i3 SAS tape drives require a mini-SAS-HD 8644 connector on the SAS cable. Includes Bezel to support Ransom Block Feature upgrade option (LSC3A-AMAG-ST1A). Does not include an expansion module, tape drives, Fibre Channel, or Ethernet cables. Other types of power cords should be locally sourced.
    Media labels are not included. Maximum of seven expansion modules, 24 tape drives and 400 licensed slots per i3 library. Requires standard 19in (48.2cm) four-post rack that supports a minimum product depth of 36.4in (925mm) or has an external rack depth at least 42.13in (107.0cm) deep, such as APC AR3100. Customer-installable, but phone-based installation (LSC33-NSYN-PB00) or onsite installation (LSC33-NSYS-000) is recommended.

OPERATION

User Interface:  Local touch screen; HTML5 remote management GUI with a mobile-first design for mobile, tablet, and PC support
Connectivity Options: 8 Gb Fibre Channel and 6 Gb SAS Inventory (12Gb with LTO9)
Speeds: Approximately 1 minute for typical configurations
Firmware Updates: Customers can choose to have automatic checks for firmware updates to ensure the use of the latest library and drive code levels
Configuration: Auto-discovery and auto-calibration for installed/added components (modules, tapes, drives, magazines, etc.)
Library Partitioning: Supports up to 12 partitions Import/Export: Configurable, 0 to 25 slots in 5-slot increments for every module


SYSTEM CAPACITY

No. of Modules Form Factor  Maximum Slots Maximum Drives
1 (1 CM) 3U 50 3
2 (1 CM + 1 EM) 6U 100 6
3 9U 150 9
4 12U 200 12
5 15U 250 15
6 18U 300 18
7 21U 350 21
8 24U 400 24

The base unit ships without drives and has 25 active slots.

    Quantum Scalar i3 Options

    LSC33-ALSL-001A
    Quantum Scalar i3 100-Slot Capacity on Demand Upgrade License
    LSC3A-AMAG-ST1A
    Quantum Scalar i3 and i6 Ransom Block Magazine Eject Stop Kit (Qty 2 Stops
    LSC33-APWR-001A
    Quantum Scalar i3 Power Supply, 80 Plus Certified Energy Efficient
    LSC33-ALEK-001A
    Quantum Scalar i3 6U+ Library Expansion Ki
    LSC3A-ARU2-000A
    Quantum Scalar i3 and i6, Gen2 Robot Upgrade
    LSC3A-AMAG-LT1A
    Quantum Scalar i3, Scalar i6 and AEL6 Left Magazine, spare
    LSC3A-AMAG-RT1A
    Quantum Scalar i3, Scalar i6 and AEL6 Right Magazine, spare
    LSC3A-ARAK-048A
    Quantum Scalar i3 and i6 48U Rack Enclosure, 600mm Wide x 1200mm Deep, PDUs
    LSC33-ALAR-001A
    Quantum Scalar i3 Advanced Reporting Option License
    LSC33-ALAV-001A
    Quantum Scalar i3 Active Vault License
    LSC33-ALPF-001A
    Quantum Scalar i3 Advanced Path Failover License, Control Path only, Single Drive, for use with IBM LTO-6 FC and later
    LSC33-ALAP-001A
    Quantum Scalar i3 Multi-Path Failover License, Control Path Only, Single Drive, for use with IBM LTO-6 FC drives and later
    LSC33-ALM1-SKMA
    Quantum Scalar i3 Library-Managed Encryption License, Scalar Key Manager, single drive
    LSC33-ALM4-SKMA
    Quantum Scalar i3 Library-Managed Encryption License, Scalar Key Manager, four drives
    LSC33-ALM1-TPMA
    Quantum Scalar i3 Library-Managed Encryption License, Third-Party Key Managers, single drive
    LSC33-ALM4-TPMA
    Quantum Scalar i3 Library-Managed Encryption License, Third-Party Key Managers, four drives
    LSCBB-AKMV-001B
    Quantum Scalar Key Manager Virtual Machine for VMware, mandatory quantity two
    LSCBB-AKMK-001B
    Quantum Scalar Key Manager Virtual Machine for KVM, mandatory quantity two
    LSCBB-ALHV-001A
    Quantum Scalar Key Manager Virtual Machine for Hyper-V, mandatory quantity two


    Download Scalar-i3 Datasheet
