LTO-10 tape drive, 30 TB per cartridge
MagStor · Part # SAS-L10-MAX
Help by phone, email and chat for as long as you own it.
Tapes you eject aren't connected to anything, so ransomware can't reach them.
Reads and writes any brand's LTO media of the right generation.
Media compatibility
| Cartridge | Reads | Writes |
|---|---|---|
| LTO-10 | Yes | Yes |
LTO is an open standard, so any brand's media works in any brand's drive.
Product details

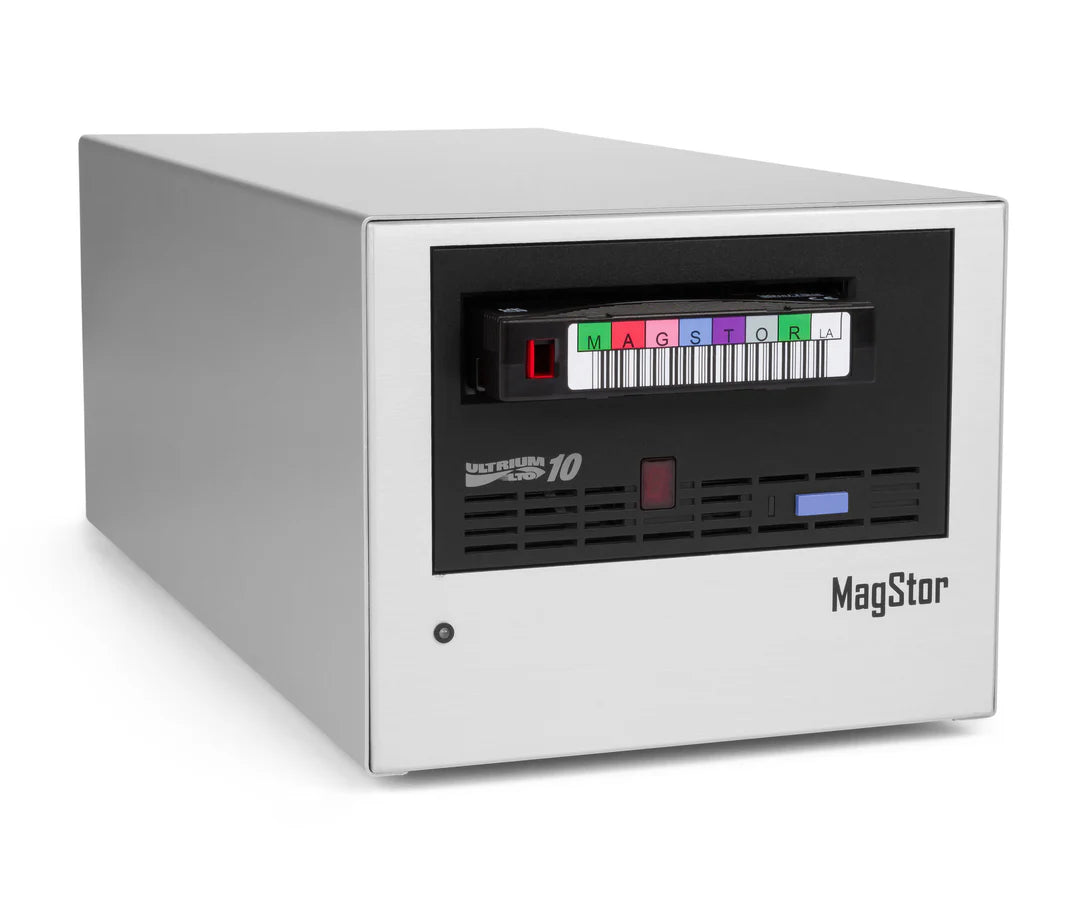

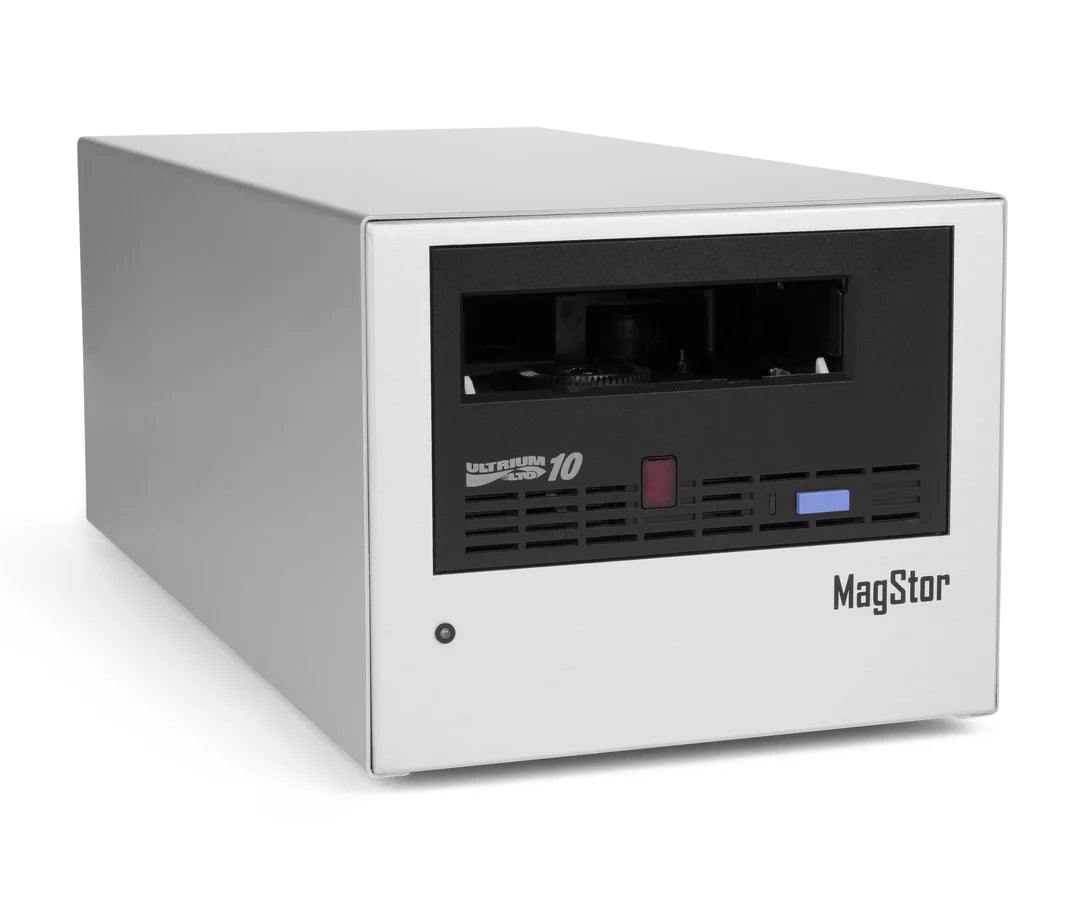

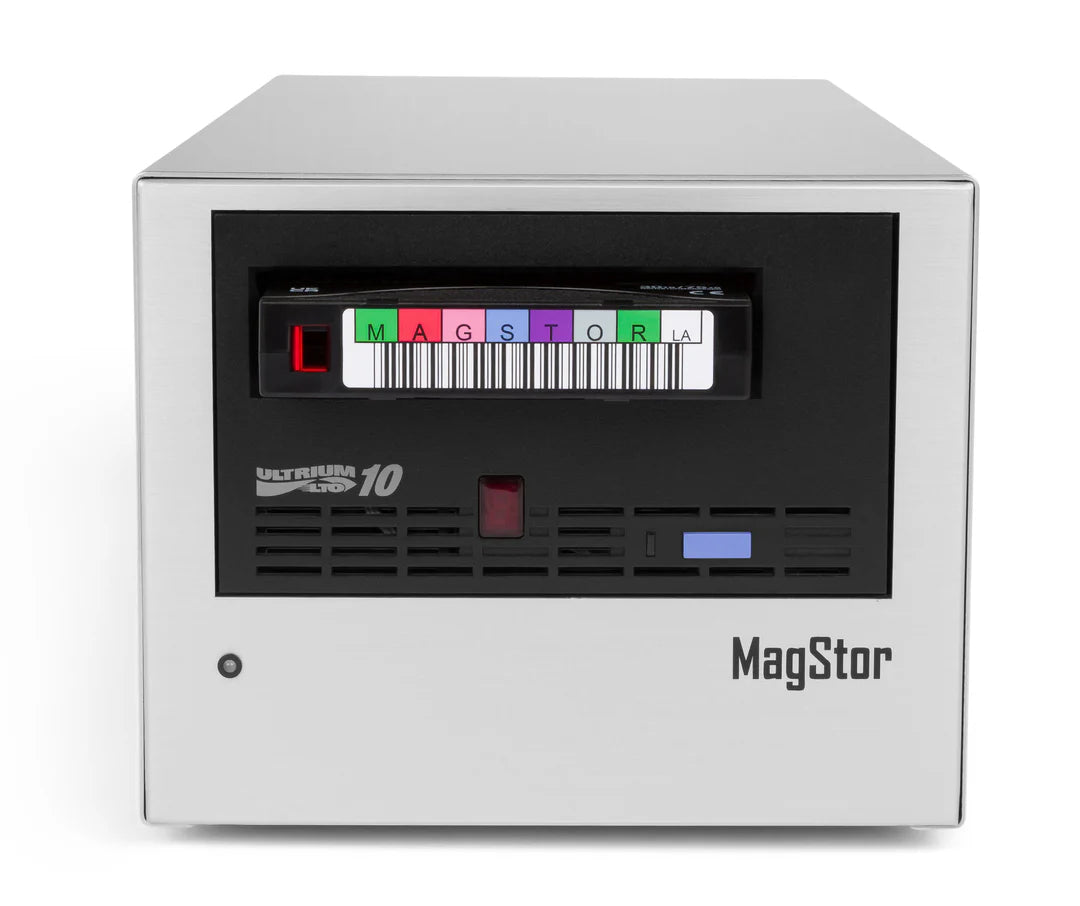

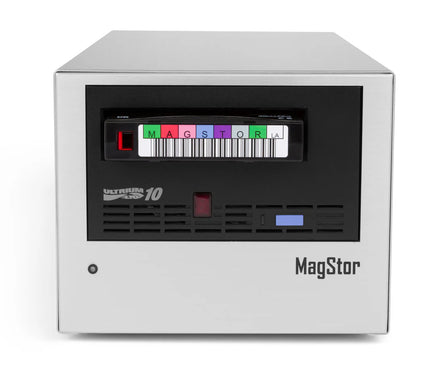

MagStor LTO-10 30TB Full-Height SAS Desktop Tape Drive (MAX) TAA
MagStor proudly presents the new LTO-10 30TB Full-Height SAS Desktop Tape Drive – the first commercially available LTO-10 SAS desktop drive on the market.
Experience the ultimate in data storage efficiency and future-proof your archives. This revolutionary full-height desktop drive combines cutting-edge LTO-10 technology with MagStor's renowned reliability, making it the premier solution for massive data backup and long-term archival.



Key Features & Advantages:

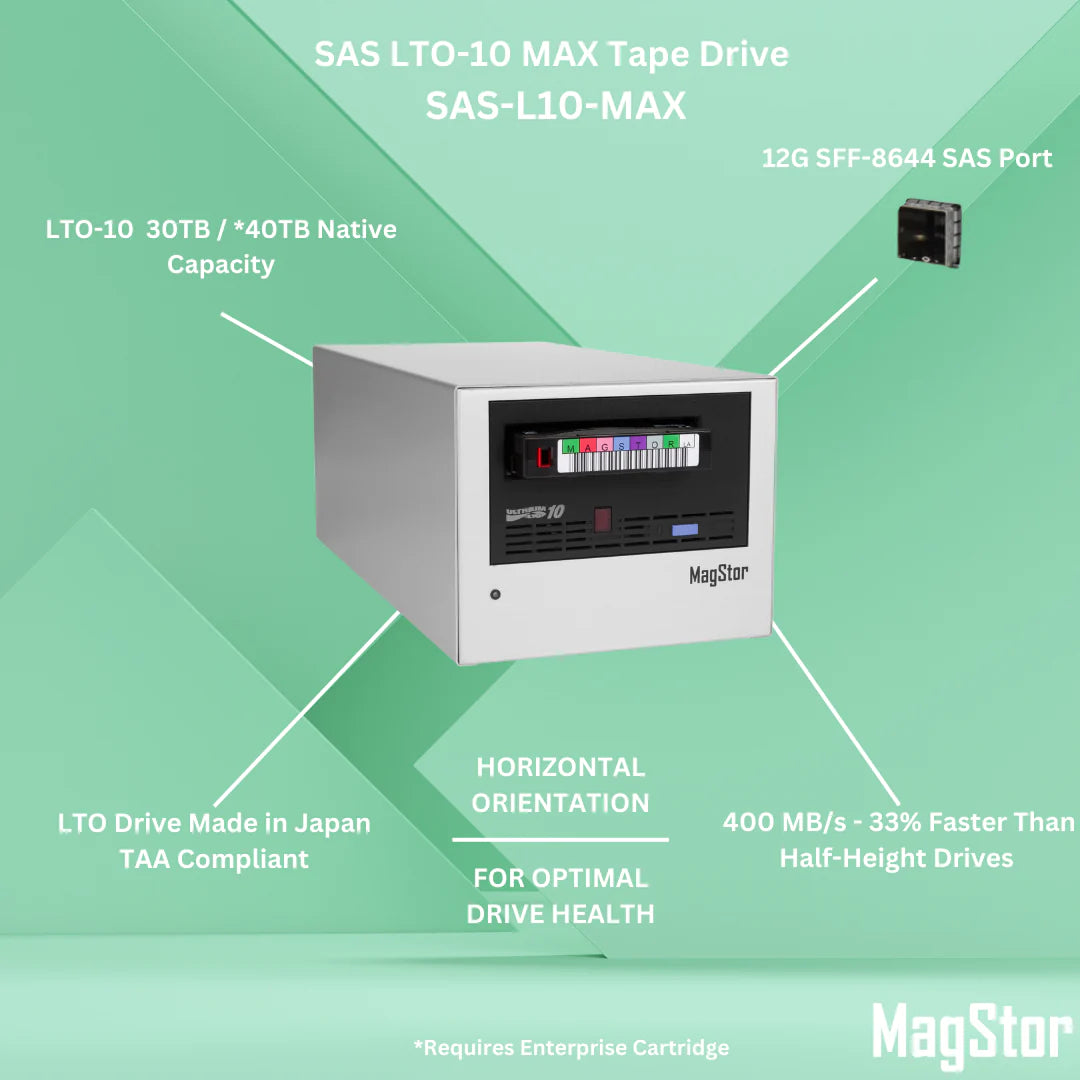

Groundbreaking LTO-10 Technology: Be among the first to leverage the power of LTO-10, offering an astounding 30TB (native) of storage capacity per cartridge or 40TB (native) with an Enterprise cartridge.
MAX - Performance: Achieve incredible transfer speeds of up to 400 MB/s (native) for rapid data ingestion and retrieval, significantly reducing backup windows.
MAX - Durability: Full-Height Drives are not only faster, but are more durable than commercial-grade Half-Height drives. Full-Height drives have a more physical robustness and tolerance to vibration, allowing them to have a rating of 300,000 load/unload cycles, as opposed to Half-Height drives at 80,000
Industry First Commercial Availability: Secure your data with the leading edge. MagStor is the first to bring this game-changing LTO-10 SAS desktop drive to market, solidifying our position as an innovator in data storage.
Horizontal Orientation: Built for demanding environments, our full-height drive ensures optimal performance and longevity. As scientifically proven, horizontal orientation prevents read/write errors and extends hardware lifespan – never use an LTO drive vertically.
Extended 30-Year Shelf Life: LTO tapes are designed to last, offering exceptional data integrity for three decades under normal environmental conditions
Comprehensive 3-Year Limited Warranty: All MagStor desktop drives include a 3-year warranty for peace of mind.

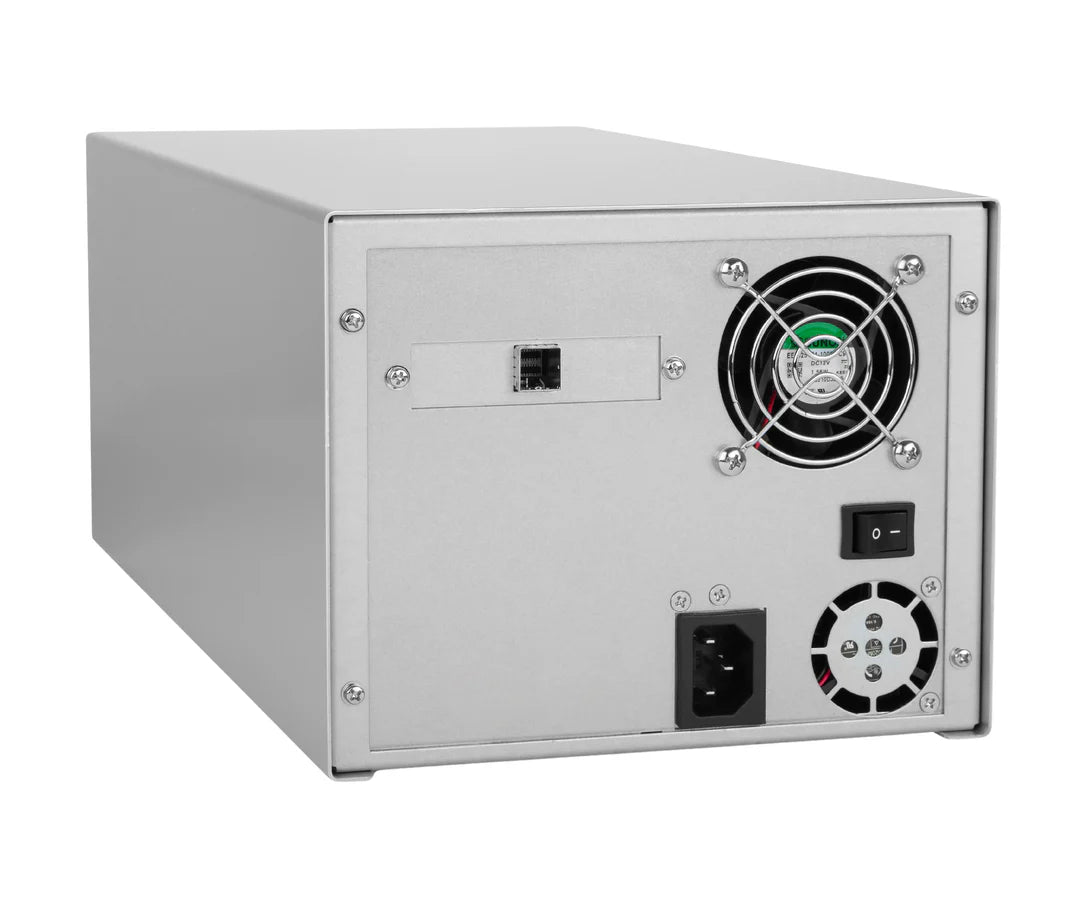

Seamless Integration: Connects easily to your Windows, macOS, or Linux workstation via 12G SAS SFF-8644.
Built-in PSU: No bulky external adapters needed, thanks to the internal 100/240 VAC 50/60 Hz auto-sensing power supply.
TAA Compliant: Meets Trade Agreements Act requirements for government procurement. MagStor LTO Internal Drives are made in Japan.
Lifetime Updates & Troubleshooting
Firmware updates are free regardless of your warranty or support status. We're always willing to help diagnose & troubleshoot issues even out-of-warranty via remote support or at our US LTO repair depot facility in Ohio.

LTO Cartridge Compatibility:
- LTO-10 30TB Read/Write - Standard Cartridge
- LTO-10 40TB Read/Write - Enterprise Cartridge
Dimensions & Weight:
15 x 6.1 x 7.25 inches (L x H x W) / 15 lbs
Power Supply:
Internal 100/240 VAC 50/60 Hz Auto-sensing
Software Compatibility:
- Any software compatible with LTO-10 Tape Drives
- IBM Storage Archive Single Drive Edition (SDE) Windows / Linux
- Hedge Canister (Windows)
- Archiware
- YoYotta
- Retrospect
- Veeam
- NetBackup
Supported Operating Systems :
- MAC OSX 10.12 or higher (Intel / M1 and up)
- Windows 10, 11 (x86 / x64)
- Linux
Recommended Host Bus Adapters (HBA) :
- 12G SAS HBA with SFF-8644 Connection
- Non-RAID Card Recommended, use "IT Mode" or "HBA Mode" if using RAID card
- ATTO or Broadcom 12G HBAs have been qualified with this device
What's Included:
- One MagStor LTO-10 Full-Height SAS Desktop Drive
- One US power cable
-
One 2-meter Mini-SAS 8644-8644 Cable
MagStor® is a registered trademark of MagStor Inc
MAC™ is a trademark of Apple
Technical specifications
| Brand | MagStor |
|---|---|
| Part number | SAS-L10-MAX |
| Type | Tape drive |
| Generation | LTO-10 |
| Capacity per cartridge | 30 TB native, 75 TB compressed |
| Native speed | Up to 400 MB/s |
| Interface | SAS |
| Form factor | Desktop |
| UPC | 850066957417 |
Full maker specs are in Product details above.
Goes with it
Support
Included with LTO tape hardware: phone, email and chat help, training and free diagnostics. How it works →
Covered by the MagStor warranty. Ask us for the terms →
Moving off older tape? We can help →
Questions
Which tapes work in this tape drive?
It reads and writes LTO-10 cartridges.
Do I need special software?
You need backup or archive software that supports LTO, or LTFS to use tapes like a drive. Ask us what fits your setup.
What support comes with it?
LTO tape hardware comes with our Lifetime Support. See what's included →
Do you have volume pricing?
Yes, for larger orders. Talk to us for a quote.
Do you ship outside the US?
Contact us for pricing and shipping outside the US.
