MagStor LTO-9 18TB AIR Thunderbolt / USB4 Desktop Tape Drive
MagStor LTO-9 18TB AIR Thunderbolt / USB4 Desktop Tape Drive
AIR Series Desktop Tape Drive
LTO-9 Thunderbolt / USB4 Desktop Tape Drive
The MagStor TRB5-HL9-AIR combines enterprise LTO-9 tape technology with modern Thunderbolt™ / USB4 connectivity in an airflow-optimized aluminum desktop enclosure. Designed for backup, archive, ransomware protection, and long-term data preservation, it delivers enterprise-class reliability with the simplicity of direct-attached storage.
Built on MagStor’s patented Thunderbolt LTO technology, the AIR Series features improved cooling, a SAS 8644 expansion port for future growth, removable offline media, and lifetime technical support from LTO storage experts.
Why Organizations Continue to Choose LTO
For more than 25 years, LTO (Linear Tape-Open) technology has been trusted by enterprises, government agencies, media organizations, healthcare providers, research institutions, and cloud providers to protect some of the world's most valuable data.
Today, LTO remains the industry standard for removable enterprise storage, combining massive capacity, enterprise-class performance, long media life, and true offline protection against ransomware, accidental deletion, and cyber threats.
For organizations storing large volumes of infrequently accessed data, LTO is widely recognized as one of the lowest long-term cost-per-terabyte storage technologies available. Unlike subscription-based cloud storage, LTO provides physical ownership of your data with no recurring capacity charges, giving organizations complete control over their archive.
Product Features
Modern high-speed connectivity.
Designed for improved cooling.
Offline removable media protection.
Designed for proper LTO operation.
Optional 5-year upgrade available.
Troubleshooting from LTO experts.

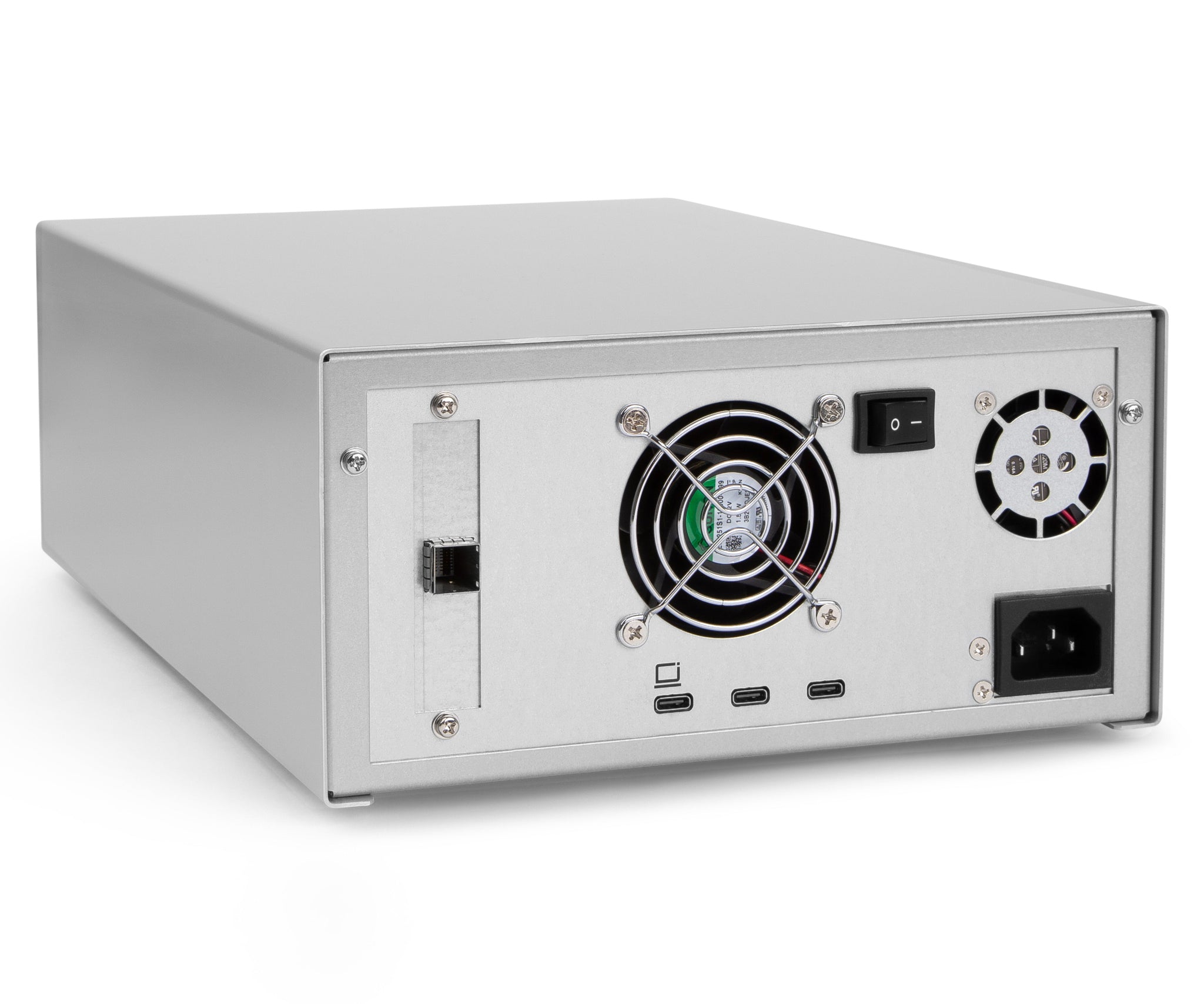

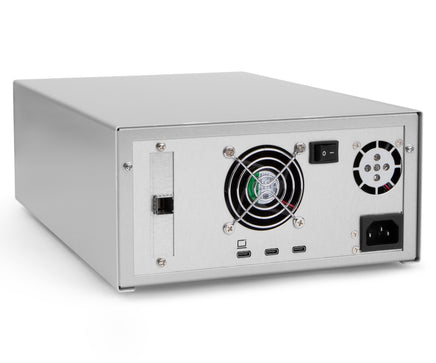

SAS 8644 Expansion Port
The integrated Mini-SAS HD (SFF-8644) expansion port lets you connect compatible SAS devices through the same Thunderbolt / USB4 host connection.
Pairs perfectly with MagStor SAS Desktop Tape Drives, allowing each drive to remain in its own enclosure with dedicated airflow and independent power.
Why use separate desktop enclosures?
- Dedicated airflow for each LTO drive
- Independent power supplies for improved modularity
- Expand one drive at a time as your storage needs grow
Included Software
Hedge Canister LTFS Included
Every MagStor AIR Thunderbolt / USB4 desktop tape drive includes one perpetual Hedge Canister LTFS license for macOS or Windows, including one year of software updates and support. Hedge Canister license redemption instructions are included in the box.
MagStor Customer Benefits
As a registered MagStor customer, you may qualify for preferred pricing on:
- Additional Hedge Canister activations
- Additional software licenses
- Support & update extensions
- Future Hedge software purchases
Trusted Across Industries
From media production and enterprise backup to healthcare, government, research, surveillance, legal, and cloud infrastructure, MagStor LTO solutions are used anywhere large amounts of data require secure, removable, offline-capable storage.
Why MagStor?
LTO-focused. Service-backed. Built for long-term ownership.
Many companies sell storage hardware. MagStor is laser focused on LTO tape storage products, services, repairs, upgrades, media, and workflow support. From small business backup to enterprise-scale data protection, MagStor provides the hardware, expertise, support, and lifecycle services needed to build and maintain complete LTO workflows.
LTO Is Our Focus
When you contact MagStor, you are working with people who know what an LTO drive is. Our team works with LTO tape drives, media, firmware, interfaces, diagnostics, libraries, repairs, and real-world backup and archive workflows every day.
Assembled & Configured in the USA
MagStor desktop LTO systems are assembled, configured, and quality checked in the United States for professional backup, archive, and data protection workflows.
Small Business to Enterprise
Whether you need a single desktop drive, a rackmount system, a tape library, media, software guidance, or long-term service planning, MagStor can help match the right solution to your capacity, budget, retention, and workflow requirements.
Free Solutions Consulting
Not sure which LTO generation, interface, software, media, or workflow is right for your environment? MagStor provides free pre-sales solutions consulting to help customers choose the right backup, archive, or data protection strategy.
One-Stop LTO Solution Shop
From desktop drives and rackmount systems to tape libraries, media, software guidance, firmware support, upgrades, repairs, and lifecycle services, MagStor helps customers source and maintain complete LTO workflows from a single partner.
LTO Repair & Service Expertise
MagStor is an LTO tape drive repair and services company, not just a hardware reseller. We provide diagnostics, repair options, and service guidance for MagStor systems and many non-MagStor LTO products.
Lifetime Troubleshooting Support
MagStor provides lifetime troubleshooting support for MagStor hardware, including help with connectivity, software configuration, media issues, firmware, drive errors, and workflow questions.
Firmware & Lifecycle Support
Some vendors limit firmware updates or support resources to customers with active paid support contracts. MagStor helps customers maintain their systems with firmware guidance, diagnostics, upgrade services, and practical lifecycle support.
Real Out-of-Warranty Options
When an out-of-warranty LTO system fails, the answer should not automatically be “buy a new one.” MagStor offers repair, replacement, upgrade, and diagnostic paths where available.
Upgrade & Expansion Services
As storage needs change, MagStor can help with drive upgrades, interface upgrades, firmware updates, service evaluations, and migration planning.
LTO Cartridge Compatibility
LTO-9 Media
18TB
Read / Write
LTO-8 Media
12TB
Read / Write
Works With Any Genuine LTO Cartridge Brand
MagStor LTO tape drives are compatible with any genuine LTO cartridge that matches the supported LTO generations listed above, regardless of manufacturer. Media from Fujifilm, IBM, HPE, Quantum, Sony, Maxell, and other LTO manufacturers can be used when it matches the supported media type.
For best results, MagStor recommends purchasing media from a trusted source to reduce the risk of unknown third-party sourcing, repackaged used media, humidity damage, or improper storage.
Recommended Value Media
MagStor's Choice LTO-9 Media
MagStor's Choice is a value-focused LTO media solution selected by LTO hardware experts for dependable backup and archive workflows. Media is sourced from leading tape manufacturers and retains the original manufacturer branding and shell color, which may vary by production batch.
Every cartridge is professionally handled and vetted by MagStor before shipment to help provide dependable performance while reducing the risks associated with unknown third-party sourcing.
- Hand-selected from trusted LTO media manufacturers
- Climate-controlled storage and handling
- Professionally inspected by LTO hardware experts
- Helps avoid improperly stored or unknown-source media
- Original manufacturer branding and shell retained
- Lifetime warranty for the original registered owner
Recommended unlabeled SKUs:
LTO-9
- MC-L9-10PK-ULBL — 10-Pack Unlabeled
- MC-L9-20PK-ULBL — 20-Pack Unlabeled
LTO-8
- MC-L8-10PK-ULBL — 10-Pack Unlabeled
- MC-L8-20PK-ULBL — 20-Pack Unlabeled
Premium Certified Media
MagStor NanoPure™ LTO-9 Certified Media
MagStor NanoPure™ is MagStor's premium certified LTO media for organizations that demand the highest confidence in long-term data protection. Every cartridge is individually cleaned, inspected, and certified before shipment.
Best For: Mission-critical archives, media preservation, enterprise libraries, and long-term retention.
- Includes every benefit of MagStor's Choice™
- Individually cleaned before certification
- Individually inspected and certified by MagStor
- Helps minimize contamination before first use
- Retains original manufacturer branding and shell
- Premium labeled media for library-ready deployment
- Lifetime warranty for the original registered owner
Recommended labeled SKUs:
LTO-9
- NP-L9-10PK — 10-Pack Labeled
- NP-L9-20PK — 20-Pack Labeled
LTO-8
- NP-L8-10PK — 10-Pack Labeled
- NP-L8-20PK — 20-Pack Labeled
Why Choose NanoPure?
New LTO cartridges can be more abrasive during first use, can have higher first-use error rates, and may require lengthy calibration. NanoPure media is cleaned, tested, and calibrated before shipment to help deliver a smoother first-use experience and reduce the impact new media can have on tape drive health.
Desktop drive recommendation: For AIR desktop drives, MagStor recommends MagStor's Choice unlabeled media packs for customers managing their own labeling or standalone tape workflows. NanoPure media ships labeled and is recommended for customers who want premium certified media preparation and lifecycle support.
Software Compatibility
Compatible with industry-standard LTFS utilities and leading backup, archive, and media asset management applications. Choose the software that best fits your workflow.
Compatibility At-A-Glance
The examples below are not a complete compatibility list and do not represent certification by every software vendor. Compatibility depends on operating system, software version, driver support, and configuration.
Enterprise IT Backup
Veeam
NetBackup
Commvault
Arcserve
Retrospect
LTFS Archive
Hedge Canister
Archiware P5
YoYotta
XenData
myLTO
Operating Systems
Windows
macOS
Linux
System Requirements
Designed for modern Windows and macOS systems equipped with Thunderbolt 3, Thunderbolt 4, Thunderbolt 5, or USB4. Review the minimum requirements below before installation.
Computer Interface Requirements
USB-C describes the connector shape—not the interface. Your computer must support Thunderbolt 3, Thunderbolt 4, Thunderbolt 5, USB4, or USB4 v2 through its USB-C port.
Supported
✓Thunderbolt 3
✓Thunderbolt 4
✓Thunderbolt 5
✓USB4
✓USB4 v2
Not Supported
✕USB 2.0
✕USB 3.0
✕USB 3.1
✕USB 3.2
✕Charging-only USB-C ports
The drive includes one 2-meter active Thunderbolt cable. If replacing the included cable, use a certified Thunderbolt 3, Thunderbolt 4, or Thunderbolt 5 cable for optimal performance and reliable device detection. While the connector is USB-C, not all USB-C cables support Thunderbolt or high-speed USB4 operation.
Additional Requirements
Sustained Source Performance
170 MB/s+
For reliable LTO-8 streaming, the computer or storage source should be able to maintain at least 170 MB/s sustained transfer performance, not just short burst speeds.
Typical bottlenecks include:
- 1GbE network storage: typically tops out around 100-120 MB/s and is usually too slow for LTO-8 streaming.
- Single USB hard drives: many USB HDDs cannot sustain high enough real-world write/read speeds across long backup jobs.
- Slow or fragmented source storage: can cause the tape drive to start and stop, reducing performance and increasing wear.
For best results, use fast local SSD storage, RAID storage, or 10GbE-or-faster network storage capable of sustained throughput.
Backup or Archive Software
Software Required
LTO tape drives require compatible backup, archive, or LTFS software to operate the drive, write data, restore files, and manage tape workflows. Software is sold separately unless otherwise specified. Examples include LTFS, Hedge Canister, Archiware P5, YoYotta, Veeam, Retrospect, and other software that supports standalone IBM LTO tape drives.
Operating Humidity
20%–50% RH
Maintain a practical operating target of 20%–50% relative humidity whenever possible. Avoid condensation at all times, as moisture can damage tape media and precision drive components. Use a clean, climate-controlled environment and avoid rapid environmental changes, dust, and blocked ventilation.
Humidity note: The 20%–50% RH range is practical operating guidance, not a substitute for the published specifications for the specific drive mechanism and media. Operating and storage limits can vary by LTO drive generation, drive mechanism, cartridge, and enclosure. Always follow the environmental specifications supplied with the drive and media. For humid locations, use air conditioning, dehumidification, and sealed media storage cases when appropriate.
TAA Compliance
Government, education, and regulated procurement environments may require equipment that complies with the U.S. Trade Agreements Act (TAA). MagStor offers TAA-compliant configurations using IBM LTO tape drive mechanisms manufactured in Japan.

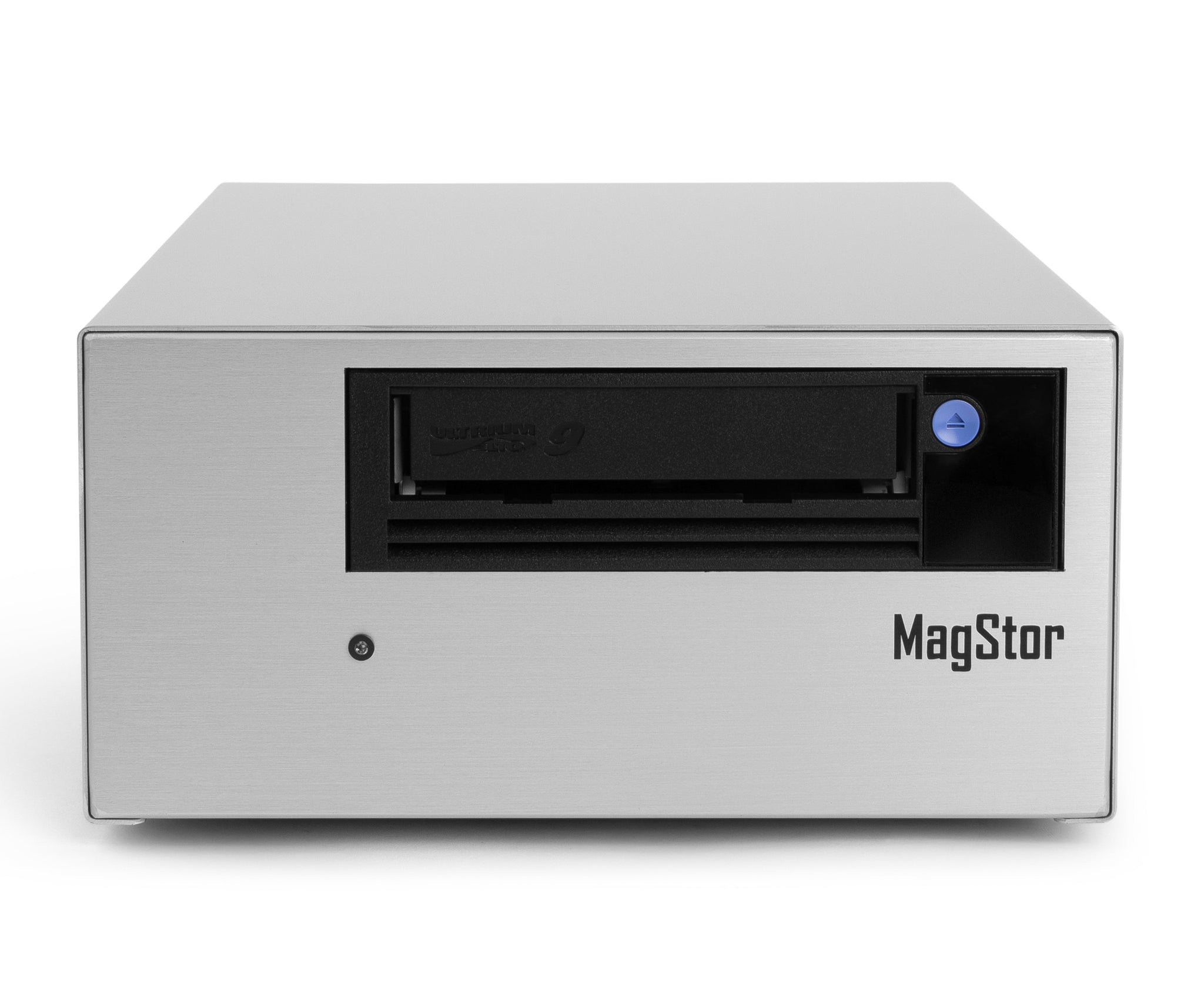

Visual Identification
Blue Eject Button
Indicates a Japanese-manufactured IBM LTO drive mechanism. This is the TAA-compliant configuration for applicable MagStor LTO drive products.
Black Eject Button
Indicates a Chinese-manufactured IBM LTO drive mechanism. This configuration is not TAA compliant.
Note: The eject button color provides a quick visual indication of the internal LTO drive mechanism's manufacturing origin. Customers requiring TAA compliance should confirm the correct Japanese-manufactured configuration before ordering.
Specifications
Technical Specifications
| Model Number | TRB5-HL9-AIR |
| LTO Generation | LTO-9 |
| Native Cartridge Capacity | 18TB |
| Compatible Media | • LTO-9 (Read/Write) • LTO-8 (Read/Write) |
| Offline Storage Capability | Removable LTO cartridges can be ejected and stored offline away from connected systems |
| Host Interface | Thunderbolt / USB4 over USB-C |
| SAS Expansion Port (SFF-8644) | 1 × External Mini-SAS HD (SFF-8644) for compatible SAS device passthrough and expansion |
| SAS Interface Speed | 12 Gb/s SAS (Mini-SAS HD SFF-8644) |
| Native Transfer Rate | Up to 300 MB/s read/write |
| Cooling Design | Improved airflow and thermal management for extended desktop archive workflows |
| Dimensions (W × H × D) | 8.5 × 4.375 × 12.375 in (W × H × D); Weight: 10.6 lbs |
| Shipping Dimensions | 18 × 14 × 12 in |
| Shipping Weight | 12 lbs |
| AC Input | 100–240 VAC, 50/60 Hz Internal Power Supply |
| Recommended Operating Environment | Clean, climate-controlled environment. Maintain a practical operating target of approximately 20%–50% relative humidity when possible. Avoid condensation at all times, rapid environmental changes, dust, and blocked ventilation. |
| Supported Operating Systems | Windows, macOS, Linux |
| Installation Orientation | Horizontal use only. Never use an LTO drive in a vertical orientation. |
| Standard Warranty | 3-Year Limited Warranty; 5-year upgrade available |
In the Box
- One MagStor LTO-9 AIR Thunderbolt Tape Drive
- One NEMA 5-15P to IEC 60320 C13 power cord (North America)
- One 2-meter active Thunderbolt cable
- Hedge Canister LTFS License Redemption Instructions
Need Help Designing an LTO Workflow?
Whether you're backing up a single workstation or designing an enterprise archive, MagStor provides free pre-sales solutions consulting to help you select the right hardware, software, media, and long-term storage strategy.
Questions? Contact the MagStor sales team—we're happy to help.
