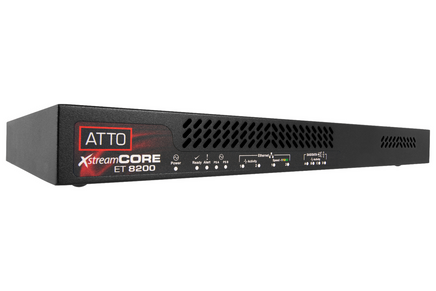

ATTO XstreamCORE ET 8200T 40Gb/s Ethernet (2-Port) to SAS intelligent Bridge 8200

ATTO XstreamCORE ET 8200T 40Gb/s Ethernet (2-Port) to SAS intelligent Bridge 8200
ATTO XstreamCORE ET 8200T 40Gb/s Ethernet (2-Port) to SAS intelligent Bridge 8200

ATTO

$8,750.00
SKU: XCET-8200-TP2

Price Match Buy custom lto tape labels
← Previous Product Next Product →

Please note, this is ATTO XstreamCORE ET 8200T ('T' series, support for Tape only) pn: XCET-8200-TP2

please contact us if you need ATTO XstreamCORE ET 8200 with support for SSD/HDD and Tape (pn: XCET-8200-002)

 ATTO XstreamCORE® intelligent bridges are high-performance accelerated protocol conversion appliances which add shared storage benefits to SAS storage but at direct attached speeds. XstreamCORE provides remote access to SAS storage enabling storage owners to disaggregate storage from server hardware using JBOD, JBOF, RAID or Tape Storage*. Use cases include mapping one or many individual drives to space limited rack or blade servers, remapping attached drives from failed servers to replacement servers, adding shared capabilities to direct attached storage and remotely locating direct attached disk or tape devices.

Optimized for high performance with multiple hardware acceleration engines, XstreamCORE provides industry-leading performance to up to 64 servers with less than 2 microseconds of added latency. XstreamCORE enables a common set of services and features and is engineered with an open design that does not alter the data path. ATTO intelligent bridges keep overall storage solutions flexible without locking users into proprietary hardware implementations. XstreamCORE is a modular building block with technology that allows SysAdmins to reduce resource load while decoupling storage from server resources.

*XCET-8200-TP2 supports Tape only

Technology:

    • xCORE™ Acceleration Technology to eliminate bottlenecks
    • eCORE™ Control Engine adds common, open storage services
    • XstreamVIEW™ Storage Manager for easy remote configuration, management and diagnostic capabilities
    • Host LUN Mapping initiator to LUN mapping
    • Drive Map Director™ patented SAS device mapping
    • Support for Extended Copy (LID1) to offload CPU, memory and storage fabrics
    • Supports iSER (iSCSI Extensions over RDMA)
    • Support ATTO's Hardware Accelerated iSCSI
    • XstreamCORE uses ATTO patented technology (US Patents #US7836225B2, US8291132B2, US7788324B2, US8504770B2)

Host Connectivity:

    • Two 40Gb/s Ethernet ports
    • Auto negotiates to 40Gb, 10Gb or 1Gb Ethernet
    • Includes two optical 40Gb/s QSFP+ modules
    • Multi-initiator access for all attached storage

Storage Connectivity:

    • Four x4 12Gb/s Mini-SAS HD connectors (16 phys)
    • Supports SAS processor devices
    • Supports up to 960 SAS/SATA SSD, HDD, or optical drivers per bridge (ET 8200 only)
    • Supports up to 16 SAS tape drives per bridge (ET 8200 and ET 8200T)
    • Supports SAS Tape Drives and Libraries
    • Supports RAID arrays with multiple LUNs behind a target (ET 8200 only)

Performance:

    • Up to 6GB/s sustained transfer rate
    • Up to 1.1M 4K IOPS per bridge
    • 2 microsecond end-to-end latency

Management:

    • Support for DMTF Redfish and SNIA Swordfish™ management
    • SNMP and SNMP MIB support
    • Built in temperature monitoring
    • Statistic Reporting for SAS and Ethernet ports

Physical:

    • Top-of-rack bridge
    • Dual hot-swappable power supplies
    • No batteries
    • RoHS Compliant
    • Advanced integration available for OEM applications
    • 2 year standard product warranty
    • Optional 5 year total warranty and advanced replacement available

All finished good 8200T SKUs include: ATTO XstreamCORE 8200T intelligent bridge, RJ45 cable, power cord, small rack mounting kit, corporate brochure, getting started guide
