XenData X20-S Archive Tape Library Appliance
Bundle with a MagStor Tape Library and save up to 10%.
X20-S LTO Appliance, licensed to support an LTO library with up to 25 slots and one LTO SAS drive. The X20-S has a 4-core Xeon processor, 16 GB RAM, two 1 GbE network ports, SSD system disk and 3.84 TB SSD cache volume. It runs Windows 11 Pro.
X20-S Overview

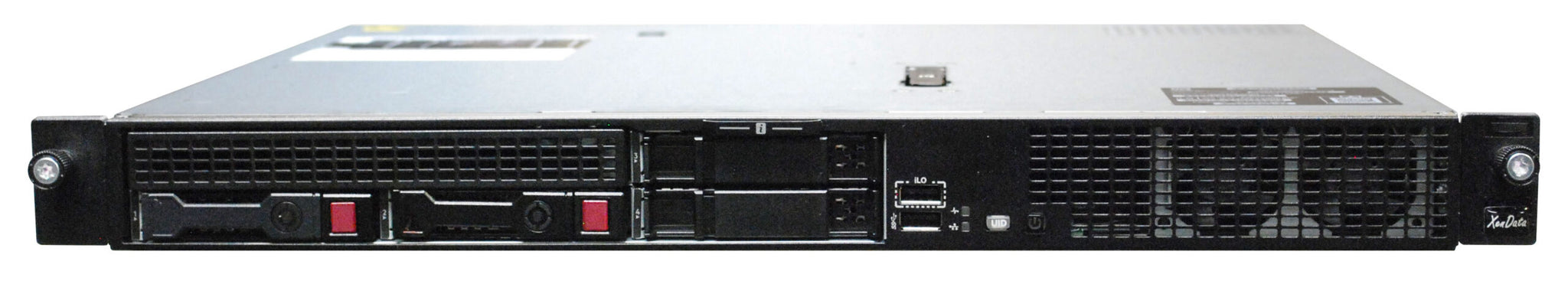

The X20-S Appliance is a 1 RU rack-mounted unit that manages an LTO library with one or two LTO drives.
- Manages a library with up to 2 SAS LTO drives.
- Manages unlimited externalized LTO cartridges
- Mounts LTO archive as SMB share
- Archiving and restoring is like writing to and reading from disk
- Automatically replicates LTO Cartridges
- LTFS or TAR Formats
- Fast internal SSD cache
- Easy migration to later LTO generations
- Runs Windows 11 Pro
- Requires minimal operator intervention
Warranty: 12 months, which includes overall remote system support from XenData, onsite support for the X20 appliance (excluding the disks) from HPE, advanced exchange for the disks and all software upgrades issued by XenData during the support period.
Base System Specification
|
Management Software: |
| Optional Upgrades | |||
| PN | Description |
Price |
|
|
101049 |
Dual port 10 GbE network adapter HPE 530SFP+ pre-installed in server. This adds two 10 GbE ports and uses one PCIe slot. Optical transceivers (SKU 101081) not included. |
$688 |
|
|
101081 |
SFP+ 10 Gb/s LC Short Range Transceiver for insertion in SKU 101049, 101092 or 201092. Quantity 2 is required to use both ports in the adapter. |
$255 |
|
|
101145 |
Dual port 10 GbE network adapter for use with CAT6 or UTP cabling. Uses one PCIe slot. |
$885 |
|
|
239009-0 |
X20-S additional 3.84 TB SSD cache disk, pre-installed in appliance and configured in RAID0. |
$1,380 |
|
|
239009-1 |
X20-S additional 3.84 TB SSD cache disk, pre-installed in appliance and configured in RAID1 (mirrored). |
$1,380 |
|
|
239010-1 |
X20-S additional 480 GB system SSD, pre-installed in appliance and configured in RAID1 (mirrored). Applicable to item 239008-02. |
$550 |
|
|
X20-2DRIVE-LM |
Perpetual software license upgrade for the X20 to support a library with two LTO drives. Includes 12 months of support for the upgrade. |
$2,150 |
|
|
X20-25/50-LM |
Perpetual software license upgrade for the X20 to increase the number of LTO slots within the managed library from 25 to 50. Includes 12 months of support for the upgrade. |
$2,500 |
|
