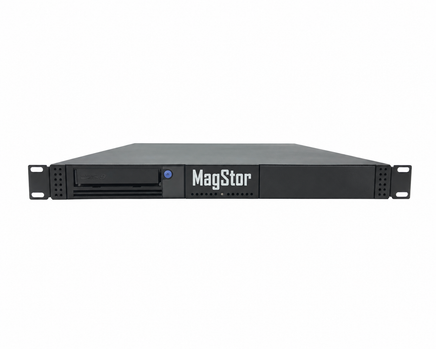

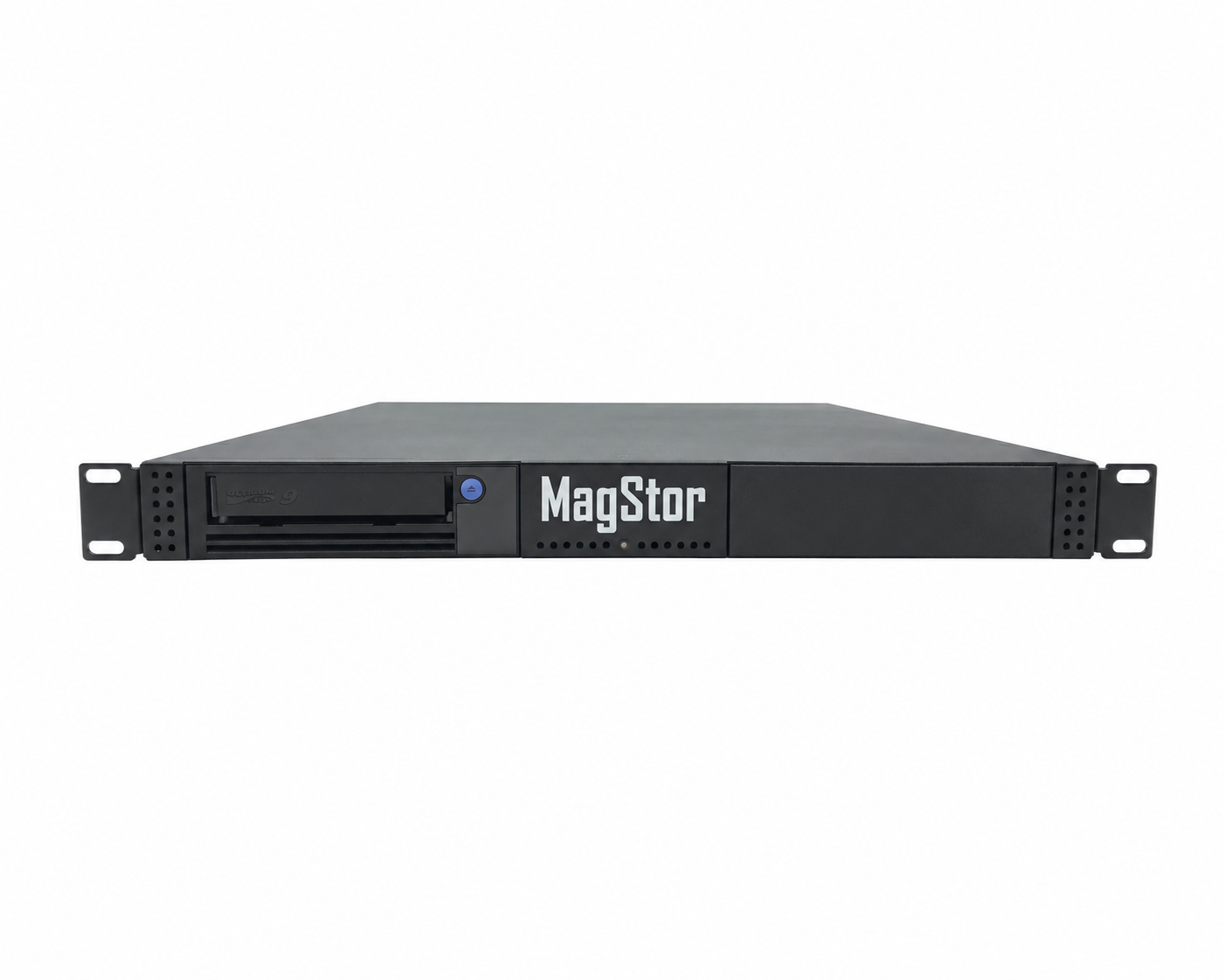

 MagStor SAS-1U-HL9 LTO9 HH Half Heigh SAS Tape Drive in 1U Rackmount (RM)

MagStor Tape Drive in a 1U enclosure with a SAS Interface for use in 19” rack.


The storage power of MagStor in your server rack. Give your server direct access to an LTO-9 drive for backups or offloading unused files. Take advantage of LTFS (Linear Tape File System), to easily drag and drop files to and from an 18TB LTO9 tape. Compatible with all software and formats that support IBM LTO-9 Tape drives.


  • LTO9 Tape Drive
  • 18TB of storage per tape
  • Read / Write LTO9 and LTO8 tapes
  • 12G SAS SFF-8644 Interface
  • 300 MB/s Read/Write Speeds
  • LTFS Compatible Drag & Drop
  • TAR Compatible
  • 30 Year LTO Media Archive Life
  • TAA Compliant (Tape Drives Made in Japan)
  • Add 2nd Drive to make  SAS-1U-HL9-DUAL


MagStor SAS-1U-HL9 Includes:

  • MagStor LTO9 HH SAS Tape Drive in 1U Rackmount Enclosure
  • Rack Mounting Kit
  • US Power Cable
  • 2 Meter SFF8644-SFF8644 Mini SAS Cable


Technical Specifications

Power Supply:
100/240 VAC 50/60 Hz, 300W GOLD Rated auto switching

     Dimensions & Weight (Shipping):

    33 x 23 x 11 inches (L x H x W) / 24 lbs

    Physical Dimensions:
    431mm W x 476mm D

         Software Compatibility

        All software that is compatible with IBM LTO-9 tape drives includes the following.

        • IBM Spectrum Archive Single Drive Edition (CLI MAC, Linux)
        • PreRollPost
        • myLTO
        • StorageDNA
        • YoYotta LTFS
        • Hedge / Canister
        • Third-Party LTFS-enhanced archive/backup software
        • Third-Party TAR-based backup software, Acronis, etc.

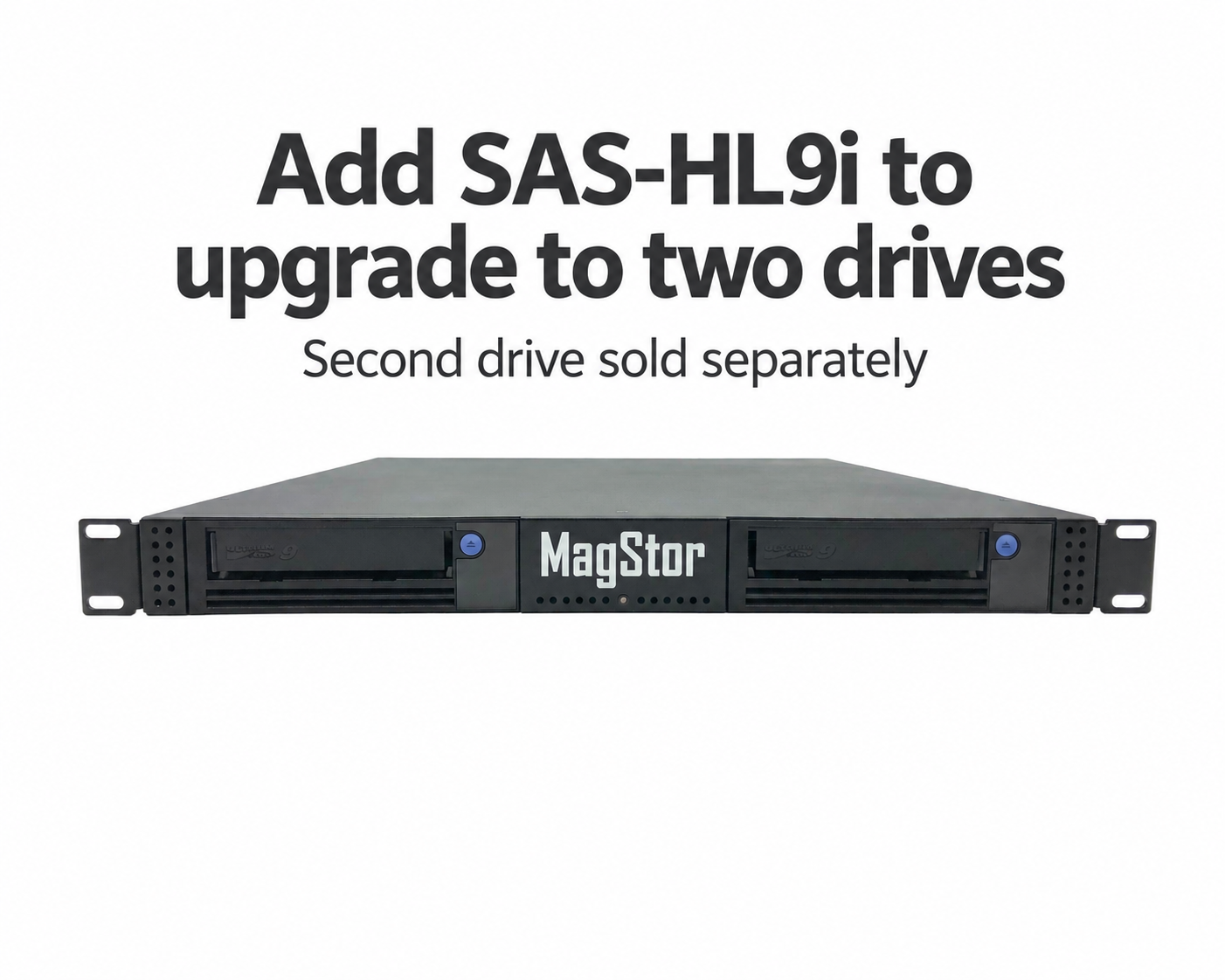

            * Picture above showing dual drive setup SAS-1U-HL9-DUAL

             Download LTO Tape Library Brochure || Download MagStor SAS LTO Drive Brochure || Download MagStor Tape Drive Overview
