E10G-HL8 is listed by MagStor as TAA compliant. For purchases with Trade Agreements Act requirements, ask MagStor for model-specific documentation and confirmation of the exact supplied configuration before ordering.
Review the exact hardware configuration and procurement documentation against your purchasing requirements; accessories and added devices do not automatically inherit the drive’s status.
The E10G-HL8 combines LTO-8 tape storage with 10GbE iSCSI connectivity in a desktop format. Install the completed enclosure with clear ventilation and compatible power, host connections, drivers and tape software. One host has exclusive access to the tape device at a time. ePro is not a NAS or an SMB/NFS file server.
Model-specific capabilities
10GbE iSCSI · desktop
Matched host interface
10GbE iSCSI connectivity; verify the host adapter, cabling, drivers and software as one configuration.
Desktop workflow
Use the completed enclosure on a stable surface with clear ventilation.
Exclusive host access
One supported host accesses the tape device at a time; the system does not provide SMB/NFS file sharing.
Configuration-specific support
Match the purchased SKU, drive count, host and application. See the model details and included items below.
System requirements
Host interface and drivers
Provide a dedicated wired 10GbE connection and supported iSCSI tape-device initiator, operating system, drivers and application.
Installation and power
Provide compatible AC power, secure installation and clear ventilation. Confirm rack loading and rail fit where applicable.
Software and configuration
Confirm the operating system, drivers, application, LTO generation, drive count and media format as one configuration. Windows/Linux require supported iSCSI initiators. macOS requires a separate compatible initiator; confirm licensing and package contents.
Additional requirements
Sustained source performance
Use the required wired 10GbE connection for ePro tape access. Wi-Fi and 1GbE are not supported for that connection; link speed does not guarantee job throughput.
Operating environment
Keep ventilation clear and avoid condensation, dust and rapid environmental changes. Follow the exact drive, enclosure and media operating limits. Confirm model-specific temperature and relative-humidity limits before installation.
Software and licensing
Choose compatible backup, archive or LTFS software, retain catalogs and any encryption keys, and test restores. Confirm application and initiator licensing separately.
Offline by design
Keep an archive you can take offline.
LTO uses removable cartridges for long-term backup and archive copies. After writing and verifying your data, eject the cartridge and store it separately from connected systems. This physical separation supports air-gapped retention, offsite rotation and protection from threats that reach online storage.
Own your archive media
Keep physical control of retained data without recurring cloud capacity charges for those tape copies.
Long-term retention
Media is designed for a shelf life of up to 30 years under recommended storage conditions. Follow the cartridge’s handling and storage guidance.
TAA Compliant
For procurement that requires TAA compliance, confirm the required configuration with MagStor before ordering.
Understand the connection
What ePro is — and what it isn’t.
What it is
Dedicated iSCSI tape storage over wired 10GbE, with block-level tape-device access for one workstation or server at a time.
How it works
A supported computer or server has exclusive tape-device access through its iSCSI initiator, tape driver and application. Other hosts cannot access the drive until it is released.
Not a NAS
Network connectivity provides access to a tape device. It does not make ePro a shared file server or provide shared storage, SMB/NFS file shares or simultaneous multi-host tape access.
Use the supported wired 10GbE network and initiator stack. See Additional requirements for network restrictions.
Main features
Designed for a complete tape workflow.
Offline protection
Unload verified media to retain a physically offline copy separate from the connected host.
LTFS and backup workflows
Choose compatible software for the required file-based archive or managed backup workflow.
Removable long-term storage
Plan cartridge labeling, catalogs, verification and periodic restore tests.
Complete configuration matters
Match the drive, interface, host, drivers, software and media format as one workflow.
Model-specific installation
Use the supported enclosure and installation requirements for this exact configuration.
Support for the workflow
Contact MagStor with the SKU and serial number for setup, firmware and troubleshooting questions.
Cartridge compatibility
Data cartridge
Native capacity
Support
LTO-8
12TB
Read / write
LTO-7
6TB
Read / write
Capacity is per cartridge; compression depends on the data. Confirm media support for the installed configuration.
Choose software for your workflow
Backup, archive and LTFS applications.
Any backup, archive or LTFS application that supports the drive’s LTO generation and host configuration can be used, even if it is not listed here. Confirm support for your operating system, interface, drivers and media format; licensing and setup requirements still apply.
Backup applications
Veeam, NetBackup, Commvault, Arcserve and Retrospect are examples to evaluate for the complete configuration.
LTFS and archive applications
XPNTL Solo, Hedge Canister, Archiware P5, YoYotta, XenData, myLTO and compatible LTFS tools are examples, not a certification list.
Choose compatible archive software and confirm required licensing.
Trusted across industries
Archive the work you need to keep.
From media production and enterprise backup to healthcare, government, research, surveillance, legal, and cloud infrastructure, MagStor LTO solutions are used anywhere large amounts of data require secure, removable, offline-capable storage.
Plan the software, verification, media rotation and access procedures around your own retention requirements.
Media & Entertainment
Archive camera originals, project files, completed productions, photography and audio masters.
Video production
Broadcast
Animation & VFX
Photography
Audio production
Digital asset management
Project handoff
Long-term content retention
Enterprise IT
Keep scheduled backups, retention copies and an offline recovery copy of critical systems and business data.
Backup
Disaster recovery
Air-gapped ransomware protection
Offsite rotation
Data migration
Compliance retention
Long-term storage
Government & Public Sector
Build controlled records-retention workflows and select the documented TAA-compliant configuration when procurement requires it.
Federal agencies
State & local government
Defense contractors
Public records
Digital evidence
Public safety
TAA procurement
Records retention
Healthcare & Life Sciences
Support long-term imaging and research archives within the organization’s approved security, access and retention procedures.
PACS imaging
EMR / EHR retention
Medical research
Genomics
Laboratory data
HIPAA-sensitive data protection
Clinical archives
Education & Research
Preserve research datasets, instrument output, simulation results, CAD projects and geospatial collections.
Retain institutional records, digitized collections and preservation masters with an organized restore process.
Universities
Scientific research
High-performance computing
Climate data
Astronomy
Engineering datasets
Institutional data preservation
Security & Surveillance
CCTV retention
Body camera footage
Video evidence
Smart city deployments
Public safety
Long-term surveillance storage
Legal & Financial
eDiscovery
Audit records
Client files
Regulatory compliance
Financial records
Case evidence
Offline business continuity copies
Industrial & Manufacturing
CAD / CAM
Product lifecycle data
Engineering drawings
Machine vision
Quality inspection
Factory automation data
Durable offline retention
Cloud, MSP & Data Center
Customer backups
Cold storage
Multi-tenant environments
Offsite archive
Disaster recovery
Long-term retention
Service provider data protection
Model specifications and included items
Details below apply to E10G-HL8. Confirm the selected configuration and its listed accessories.
10G Ethernet iSCSI LTO Tape
Remote Enterprise Tape Connectivity
Dedicated 10GbE iSCSI tape workflows for backup, archive, air-gap, and remote deployment environments.
10GbE iSCSISingle Host AccessUp to 12TB NativeUp to 100m Deployment
IMPORTANT BEFORE YOU BUY
The MagStor ePro Series is NOT a NAS or shared file server.
Uses dedicated 10G Ethernet iSCSI connectivity
One host has exclusive access to the tape device at a time
Once connected, the drive becomes unavailable to other systems
Requires wired 10GbE networking
1GbE and Wi‑Fi are not supported
Does not provide SMB or NFS file sharing
How ePro Works
The MagStor ePro presents the tape drive over 10GbE iSCSI networking. A workstation or server accesses the tape device directly, making it appear as a locally attached tape drive to that system.
Enterprise Features
Enterprise 10G Ethernet Connectivity
Dedicated high-speed iSCSI connectivity for remote tape workflows over standard 10GbE infrastructure.
Remote Tape Deployment
Place tape hardware up to 100 meters away from the connected host system while maintaining high performance.
Single-Host Direct Access
The ePro presents the tape device directly to one connected workstation or server for maximum compatibility and performance.
Dual 10GbE Ports
Job throughput depends on the installed tape drives, host, network and software; network link rates are not tape transfer rates.
Cross-Platform Compatibility
Compatible with Windows, Linux, and macOS environments using standard iSCSI workflows.
Compact Desktop Form Factor
Deploy enterprise-grade LTO in editing suites, machine rooms, server closets, or remote archive environments.
TAA Compliant
LTO mechanisms manufactured in Japan and assembled in the USA for enterprise and government procurement requirements.
LTFS compatible
Supports drag-and-drop LTFS workflows for archive and interchange applications.
Ideal Use Cases
Media and entertainment archive workflows
Air-gapped backup strategies
Remote tape deployment in machine rooms
Server room and rack space optimization
Shared infrastructure with reassigned tape access between systems
Universal Software Compatibility: Built on Industry Standards
Any backup, archive or LTFS application that supports the drive’s LTO generation and host configuration can be used, even if it is not listed here. Confirm the application version’s support for your operating system, interface, drivers and media format; software licensing and setup requirements still apply.
MagStor ePro systems use standardized LTO and iSCSI/SCSI communication, making them compatible with many software packages that support standalone LTO tape drives.
Compatibility At-A-Glance
Any backup, archive, or LTFS software that supports standalone LTO tape drives through standard SCSI/iSCSI tape access should work with MagStor ePro hardware.
Windows includes Microsoft iSCSI Initiator built into the operating system. Linux includes native iSCSI initiator support through standard OS tools. macOS requires a separate iSCSI initiator from ATTO Technologies; it is available from MagStor at a discount.

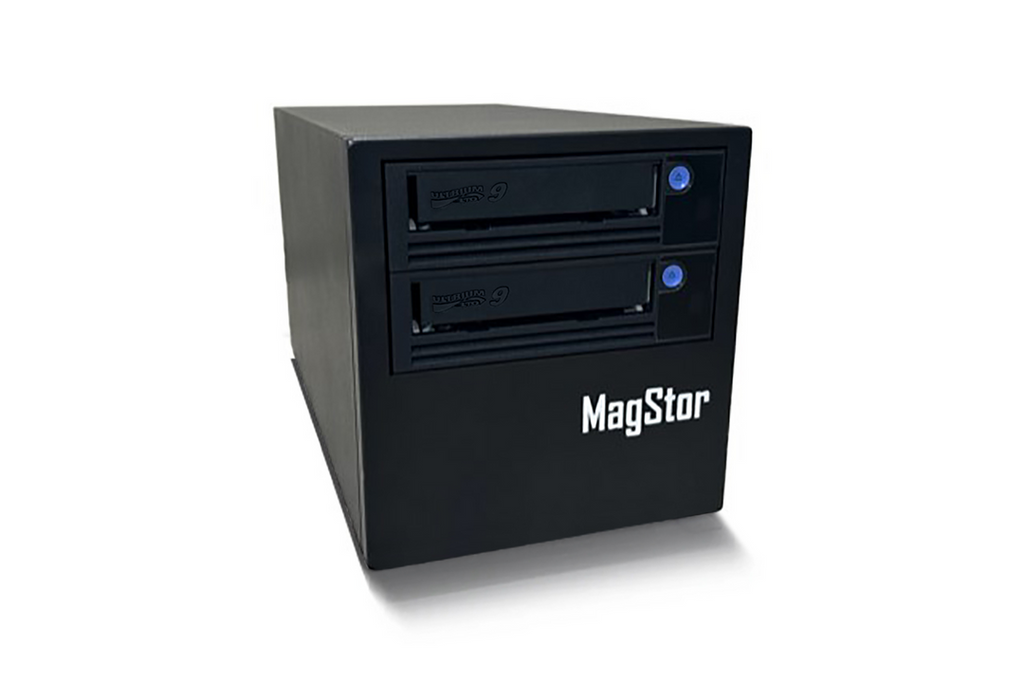

Compatible Add-On Internal Drives
MagStor ePro desktop enclosures support additional internal SAS LTO tape drives. Only SAS internal drives are used in this desktop enclosure.
Want to upgrade this unit to dual drives or create a mixed-generation configuration? Simply purchase an additional compatible internal SAS drive and install it yourself, or have it installed by an authorized service center. Labor is free at authorized service centers in the USA.
Part Number
Gen
Interface
Form
Native
Compressed*
Speed
SAS-HL9i
LTO-9
SAS
HH
18TB
45TB
Up to 300 MB/s
SAS-HL8i
LTO-8
SAS
HH
12TB
30TB
Up to 300 MB/s
HH = Half-Height. Speed is listed as the native maximum sustained read/write transfer rate per drive. Actual performance may vary based on host system, network configuration, iSCSI setup, source storage performance, file size, and software workflow.
*Compressed capacity is a theoretical maximum based on 2.5:1 data compression. Use native capacity for conservative planning.
Specifications
LTO Generation
LTO-8
Native Capacity
12TB
Transfer Speed
Up to 300 MB/s
Interface

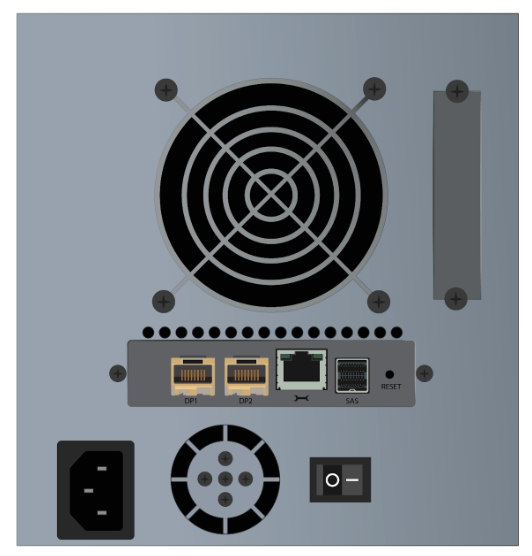

2 x 10GbE RJ45
Expansion
1 x SFF-8644
Management Port
1 x RJ45
Power
110-240 VAC
Operating Temperature
15-39° C
What's Included
MagStor ePro 10G Desktop Unit
LTO8 Tape Drive Configuration
Power Cable
3-Year Warranty and Lifetime Technical Support
Setup and technical support
Support for the complete workflow.
Contact MagStor with the model and serial number to verify the drive, host connection, software and installation. Confirm the applicable hardware warranty and service terms for the purchased configuration.
